PACCAR Powertrain

GO FASTER.
GO INTEGRATED.

The PACCAR Powertrain maximizes your miles on the road and your payload hauled with one comprehensive integrated solution.

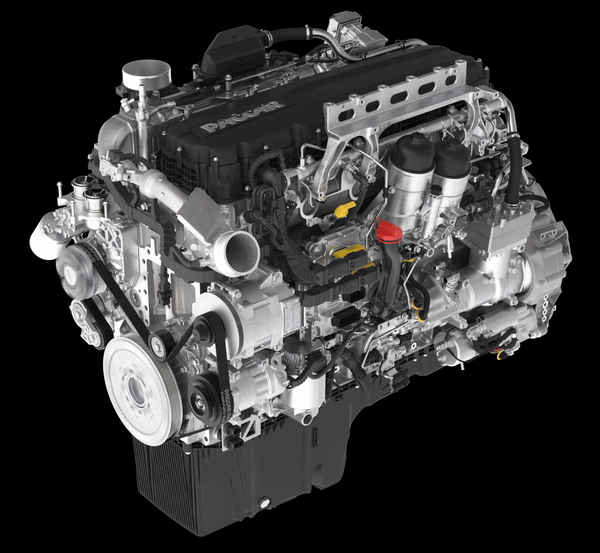

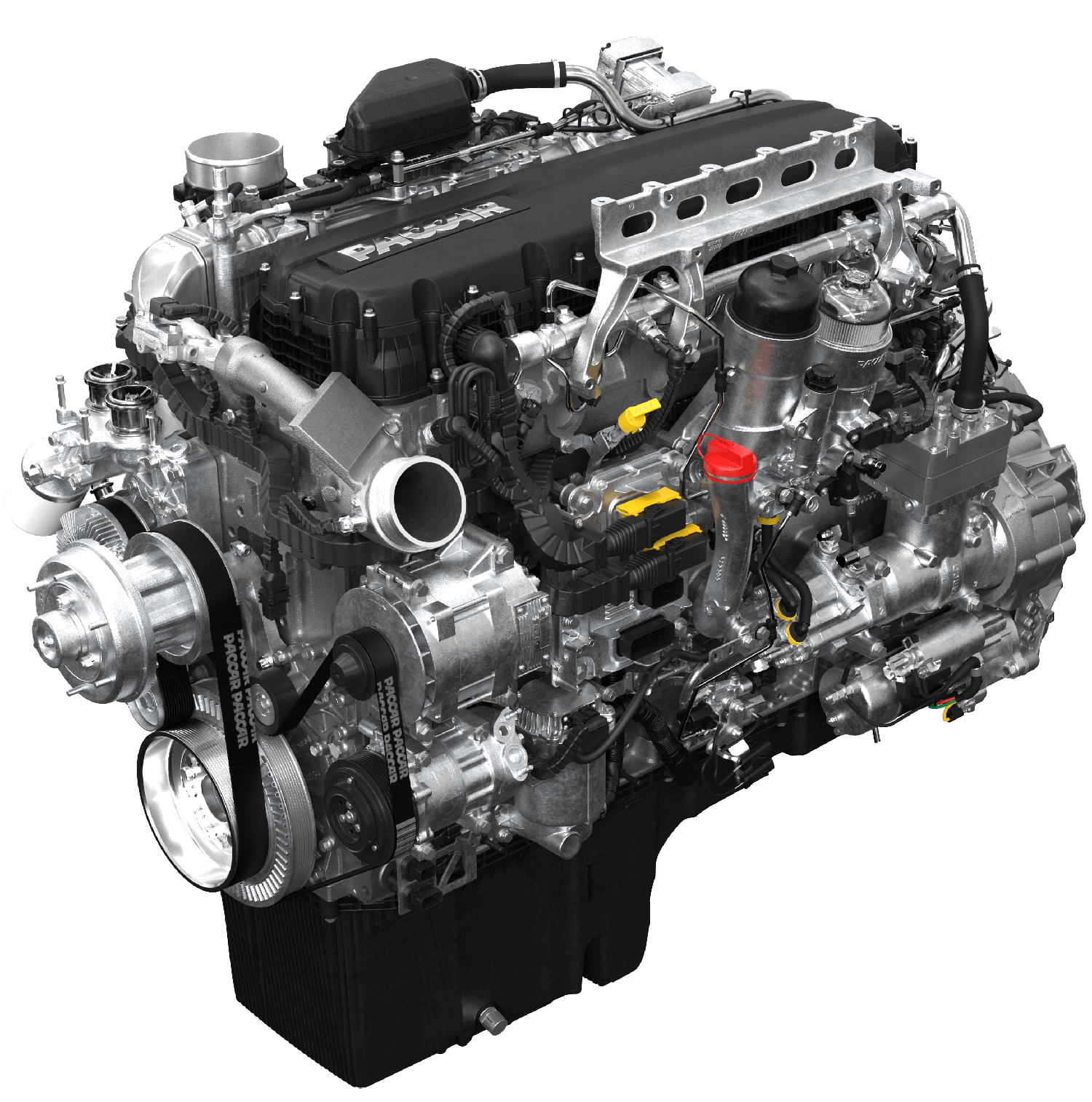

MX-13

High Performance Redefined

The Paccar MX-13 12.9 liter engine features enhanced durability, reduced complexity, performance upgrades, increased downspeeding capabilities, and more efficient combustion.

Quality We Stand By

Engines are more than a tool to move your trucks forward – they are the beating heart. Every PACCAR engine is meticulously designed for maximum power, performance, and efficiency in mind.

MX-13 Capabilities

Uptime

MX-13 engines are built for durability, with multi million-mile endurance testing. Every MX-13 comes standard with remote diagnostics to deliver focused uptime support.

Excellent Fuel Economy

Fuel savings is one reason the PACCAR MX-13 continues to gain popularity in the heavy-duty market.

Low Cost of Service

Low cost of service with up to a 75,000-mile oil change interval, MX engines will save your business money due to the low cost of routine maintenance over the life of the engine.

Weight Savings

Less engine weight means hauling more payload with every trip. The PACCAR MX-13 engine provides truck owners up to a 450 low bed weight savings over 15 liter. engines.

Superior Performance & Quiet Operation

An MX engine has broad torque curves, so it requires less shifting, and the quiet operation improves the driving experience.

Built For The Long Haul

The PACCAR MX-13 Engine is built for the long haul. No matter what the conditions, this engine will get you to your destination with power to spare.

Build Specifications Chart To Include Content:

Configuration: Inline 6-Cylinder
Bore X Stroke (MM): 130X162
Displacement: 12.9 Liters
Dry Weight: 2,500 Pounds
Oil System Capacity: 42 U.S. Quarts
Horsepower: 405-510 Horsepower
Peake Torque: 1,550-1,850 Pound-Foot
Governed Speed: 2,100 Revolutions Per Minute
Base Warranty: 2 Years/250,000 Miles./400,000 Kilometers
Major Components Warranty: 5 Years/500,000 Miles/800,000 Kilometers
Certification: Environmental Protection Agency (EPA) 2024
Maximum Operating Weight: 140,000 Pounds

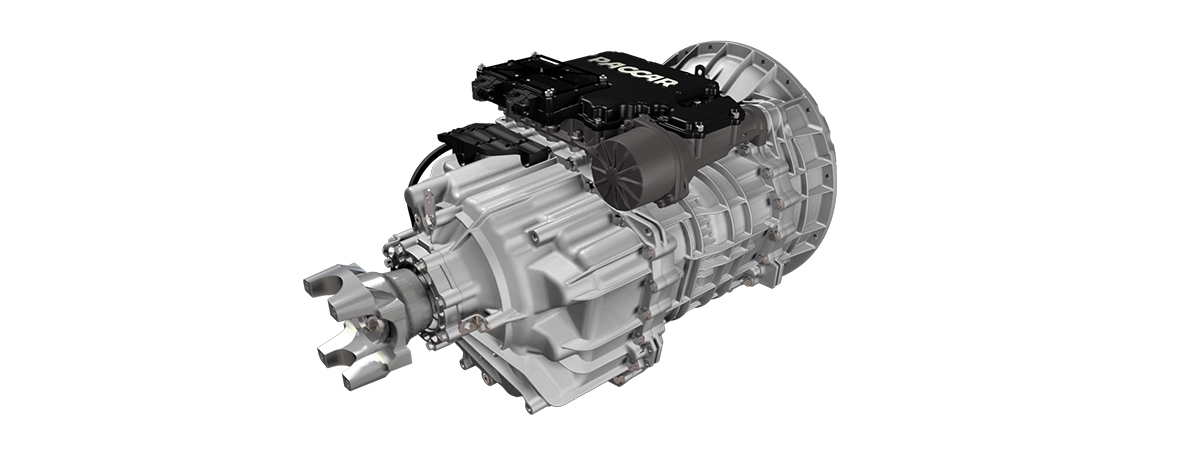

TX-18 & TX-18 Pro

Performance and Durability

The PACCAR TX-18 combines performance and rugged durability needed to get the tough jobs done. Optimized for integration with MX engines and ideal for vocational, heavy-haul, severe service, and high-performance applications on highway. PACCAR also offers TX-18 Pro, which allows for on- and off- highway performance and heavy vocational needs.

High Performance Meets Rugged Durability and Efficiency

Higher Engine Torque and Weights

Twin-countershaft design with helical gears and large bearings optimized for higher engine torque and weights.

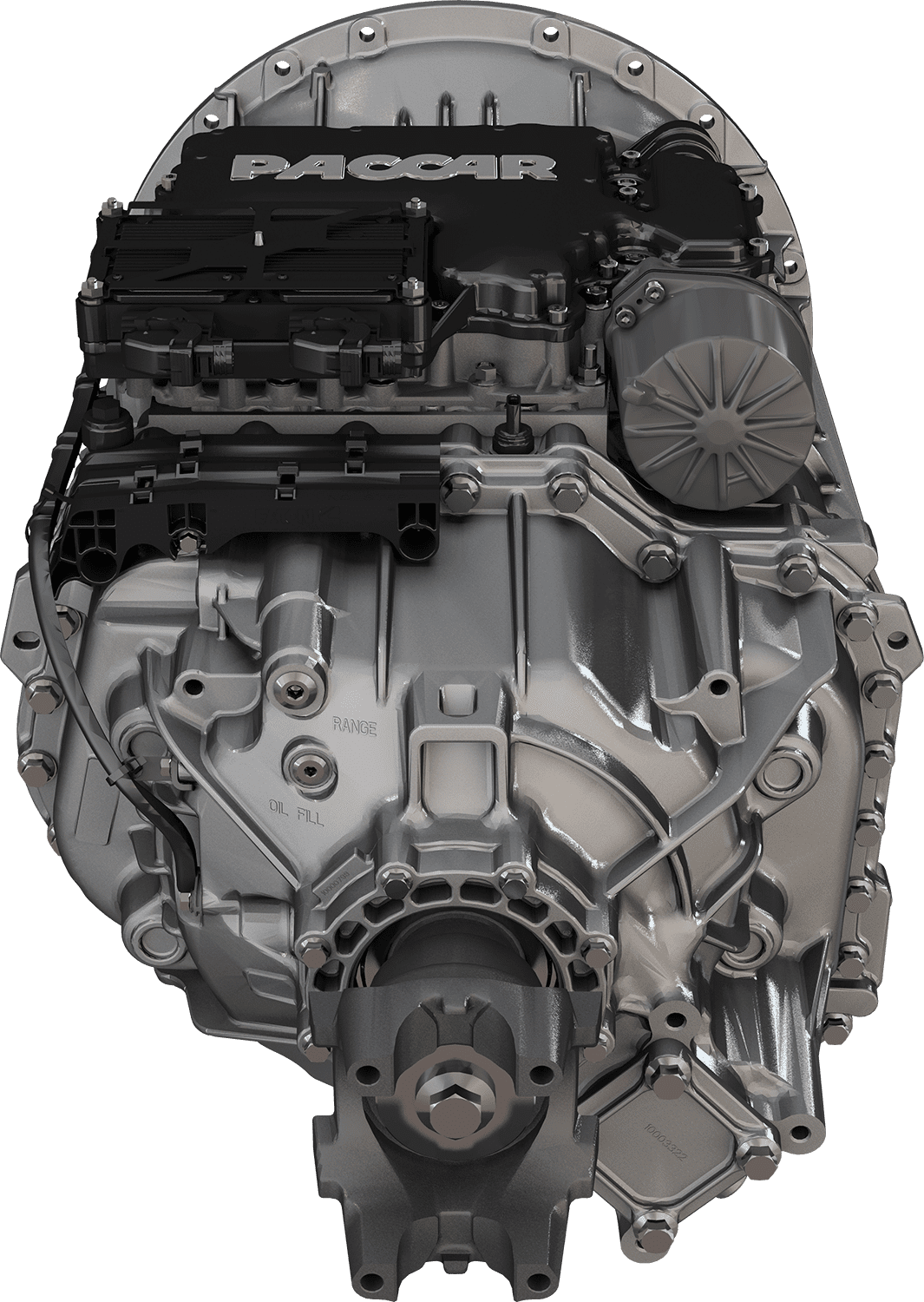

Excellent Performance
In All Driving Conditions

Best overall gear ratio coverage with small even steps for smooth shifts.

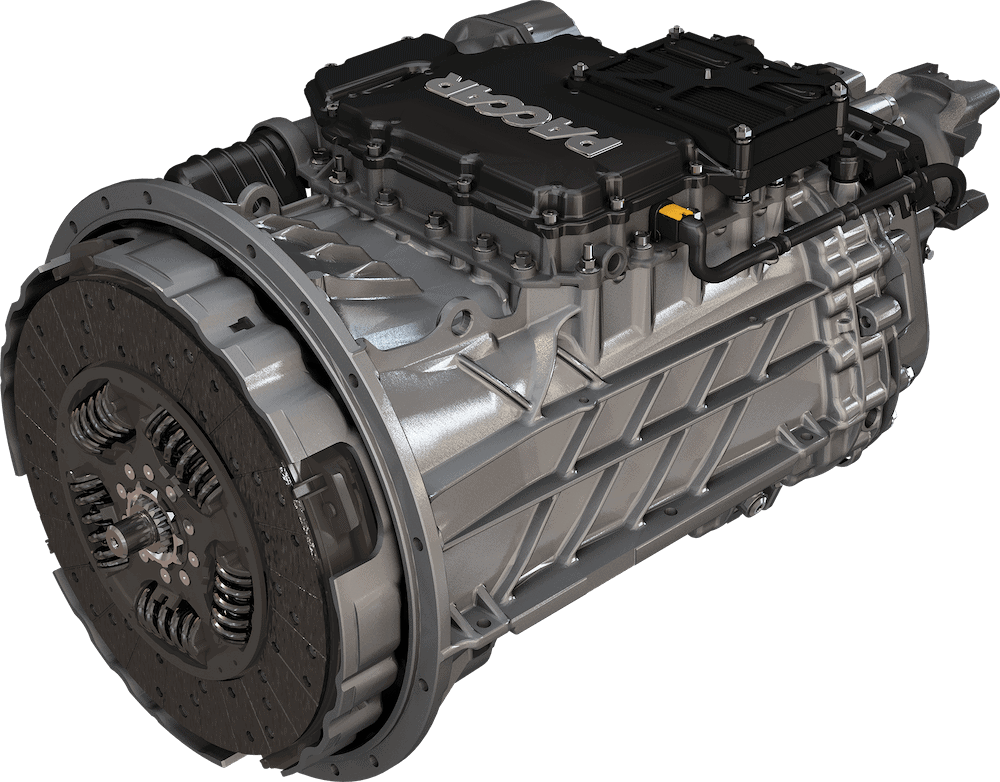

Increased Maneuvering Time At Higher Loads

Extreme duty clutch allows more controlled clutch slip and increased maneuvering time at higher loads.

TX-18 Highlights

Twin-countershaft design with helical gears and large bearings optimized for higher engine torque and weights

Smooth and intuitive shift strategies that improve fuel economy and driver comfort up to six configurable reverse speeds

Longest transmission oil change interval for linehaul applications (750,000 miles)

Extreme duty clutch available for precise low speed maneuvering at max. capacity

Internal wiringand sensors minimize exposure and corrosion for improved uptime

Transmission fluid pressure and oil temperature sensors alert driver before system is damaged

Coolerless design (up to 110K lbs. GCW) reduces maintenance requirements
